STOK NO 80093

MARKA ASUS

GARANTİ SÜRESİ 36

İŞLEMCİ AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors

YONGA SETİ AMD A520 Chipset

BELLEK 2 x DIMM slots, max. 64GB, DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory*

Dual channel memory architecture

DAHİLİ GRAFİK 1 x HDMI™ port**

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

** Supports 4K@60Hz as specified in HDMI 2.1.

GENİŞLEME YUVALARI AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors

1 x PCIe 3.0 x16 slot (supports x16 mode)

AMD A520 Chipset

1 x PCIe 3.0 x1 slot

SES DESTEĞİ Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

LAN 1 x Realtek 1Gb Ethernet

USB PORTLARI Rear USB (Total 6 ports)

4 x USB 5Gbps ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

DEPOLAMA ARAYÜZÜ Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

AMD A520 Chipset

4 x SATA 6Gb/s ports

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

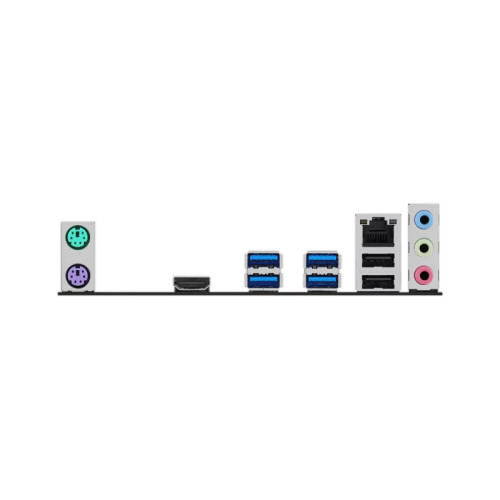

ARKA GİRİŞ/ÇIKIŞ PORTLARI 4 x USB 5Gbps ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x HDMI™ port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 keyboard (purple) port

1 x PS/2 mouse (green) port

DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power Related

1 x 24-pin Main Power connector

1 x 4-pin +12V Power connector

Storage Related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

İŞLETİM SİSTEMİ DESTEĞİ Windows® 11, Windows® 10 64-bit

FORM FAKTÖRÜ micro-ATX Form Factor

23.6 cm x 19.3 cm

BIOS 128 Mb Flash ROM, UEFI AMI BIOS
